聚乙脂膜電容器

型號 : PEN

數量 :

加入詢價車

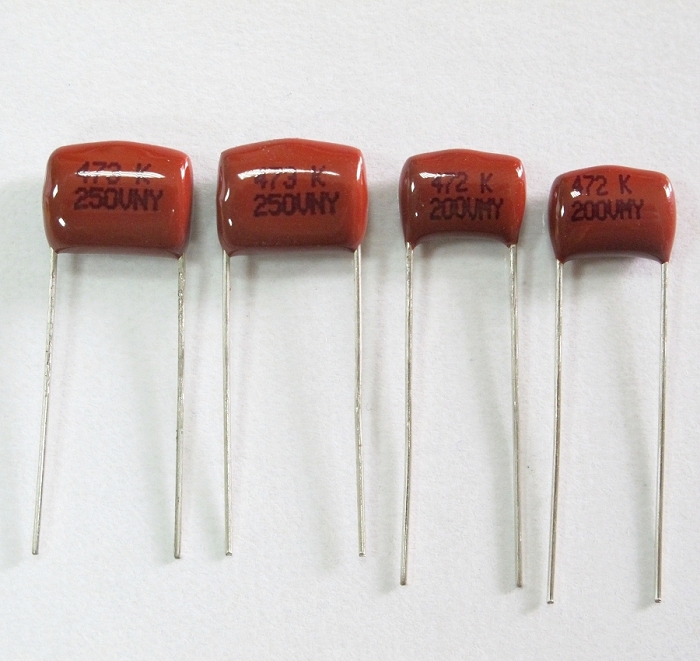

POLYESTER FILM CAPACITOR (PEN)

聚乙脂膜電容器

適合使用於SPS、UPS、Monitor、電視、電子安定器等…

PEN TYPE:
RV 50VDC/100VDC 250VDC 400VDC
SIZE W H T P±1 W H T P±1 W H T P±1
uF
.001 10.0 8.5 6.0 7.0 10.0 8.5 6.0 7.0 13.0 5.0 9.0 10.0
.0015 10.0 8.5 6.0 7.0 10.0 8.5 6.0 7.0 13.0 5.0 9.0 10.0
.0022 10.0 8.5 6.0 7.0 10.0 8.5 6.0 7.0 13.0 5.5 9.0 10.0
.0033 10.0 8.5 6.0 7.0 10.0 8.5 6.0 7.0 13.0 5.5 9.5 10.0
.0047 10.0 8.5 6.0 7.0 10.0 9.0 6.0 7.0 13.0 6.0 10.0 10.0
.0068 10.0 8.5 6.0 7.0 10.0 9.0 6.0 7.0 13.0 6.5 10.5 10.0
.01 10.0 8.5 6.0 7.0 11.0 9.0 6.0 7.0 13.0 7.0 11.0 10.0
.015 10.0 8.5 6.0 7.0 13.5 10.0 6.0 10.0 13.0 7.5 11.5 10.0
.022 11.0 8.5 6.0 7.0 13.5 11.0 6.0 10.0 19.0 8.0 11.5 15.0
.033 13.5 8.5 6.0 10.0 13.5 13.0 7.0 10.0 19.0 8.5 14.0 15.0
.047 13.5 9.0 6.0 10.0 14.0 14.0 8.0 10.0 19.0 9.5 15.5 15.0
.068 13.5 11.0 6.5 10.0 14.0 16.0 9.5 10.0 26.0 9.0 15.5 21.0
.1 14.0 12.5 8.0 10.0 19.0 17.0 9.5 15.0 26.0 10.5 17.5 21.0
.15 19.0 14.0 8.0 15.0 19.0 18.0 10.0 15.0
.22 19.0 16.0 8.5 15.0 25.0 21.0 10.5 21.0
.33 19.0 18.0 10.0 15.0 25.0 22.0 11.5 21.0
.47 20.0 21.0 11.0 21.0 30.0 24.0 13.0 26.0

1. OPERATING TEMPERATURE : -40 ℃~ +85℃
2. DIELECTRIC STRENGTH : 150% of rated voltage for 1 minute at 25℃
3. DISSIPATION FACTOR : 0.8% MAX. at 1KHz, 25℃
4. INSULATION RESISTANCE :
   ≧20,000 MΩ ( C≦.1μF )
   ≧2,000 MΩ*C ( C>.1μF )
1. 穩定性高
2. 耐電壓衝擊性較佳
3. 損失角低且容量較低, 高頻特性良好, 可適用於中低頻諧振電路工作
