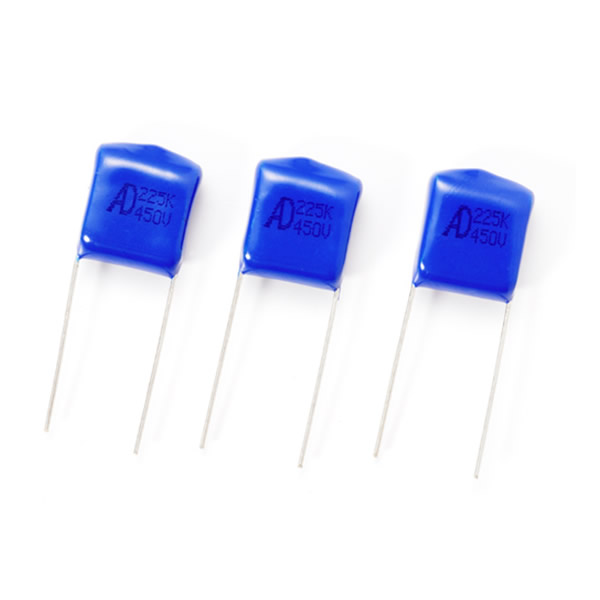

金屬化聚乙脂膜電容器
It's a capacitor used in high voltage charge-discharge, Also have many purposes like used in electronic ignition, High level power supply use, water heater, motorcycle, stun gun...etc.
1. Capaciousness with small Size
2. No Buzzing
3. The current range can be extremely large.(Current 350A)
4. Capacitance range 1uf~3.3uf/450VDC
1. Capaciousness with small Size
2. No Buzzing
2. No Buzzing
3. The current range can be extremely large.(Current 350A)
RATING & DIMENSIONS:
| PART NO. | PART NO. | CAP.( μF ) | DIMENSIONS (mm) | |||
|---|---|---|---|---|---|---|
| L (Max) | H (Max) | T (Max) | dφ | |||
| MER334K2SD0 | MER334K450VDC | 0.33 | 18.0 | 14.0 | 6.0 | 0.6 |
| MER474K2SD0 | MER474K450VDC | 0.47 | 18.0 | 16.0 | 7.5 | 0.8 |
| MER684K2SD0 | MER684K450VDC | 0.68 | 18.0 | 17.5 | 8.5 | 0.8 |
| MER105K2SD0 | MER105K450VDC | 1 | 18.0 | 19.5 | 9.0 | 0.8 |
| MER125K2SD0 | MER125K450VDC | 1.2 | 18.0 | 20.0 | 9.0 | 0.8 |
| MER155K2SD0 | MER155K450VDC | 1.5 | 18.0 | 20.0 | 9.5 | 0.8 |
| MER225K2SD0 | MER225K450VDC | 2.2 | 18.0 | 20.0 | 10.0 | 0.8 |
| TEMPRANGE | -25℃~ +100℃ |
|---|---|
| RATED VOLTAGE | 450VDC |
| CAPACITANCERANGE | 0.33- 2.2μF |
| CAPACTANCE TOLERANCE | ±10%(K) |
| DISSIPATION FACTOR | 1.2MAX (25℃10Khz) |
| WITHSTAND VOLTAGE | BETWENE TERMINALS︰600VDC 1MINUTE |
| INSULATION RESISANCE | 3000MΩ MIN (25℃DC100V 2MINIUTE) |
| WITHSTAND VOLTAGE | METALLIZED POLYESTER, TAPE WRAPPED, EPOXY RESIN FILLED |
