金屬化聚乙脂膜電容器

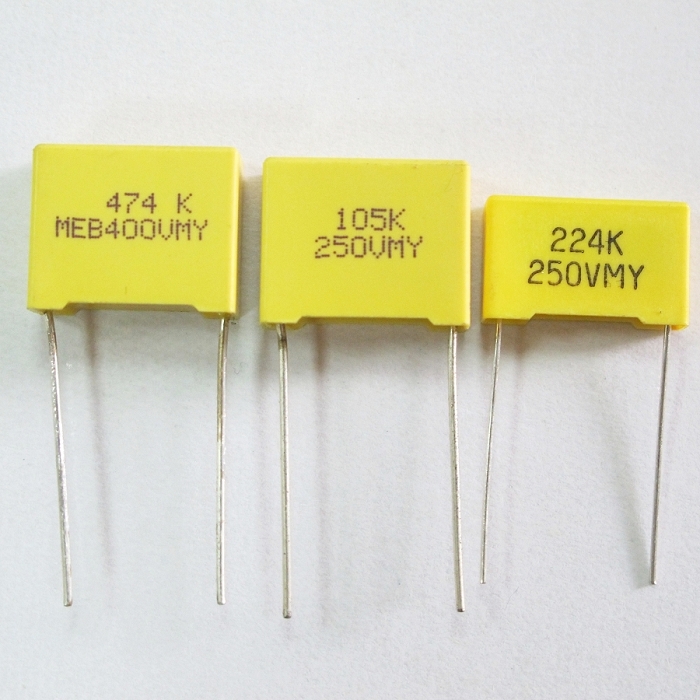

METALLIZED POLYESTER FILM CAPACITOR (MEB)
金屬化聚乙脂膜電容器(盒裝)
適合使用於SPS、UPS、Monitor、電視、電子安定器等…
MEB TYPE:
| RV | 100VDC | 250VDC | 400VDC | 630VDC | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SIZE | W | H | T | P±1 | dø | W | H | T | P±1 | dø | W | H | T | P±1 | dø | W | H | T | P±1 | dø |
| CAP | ||||||||||||||||||||
| 0.01 | 13.0 | 11.0 | 5.0 | 10.0 | 0.6 | 13.0 | 11.0 | 5.0 | 10.0 | 0.6 | 13.0 | 11.0 | 5.0 | 10.0 | 0.6 | 13.0 | 11.0 | 5.0 | 10.0 | 0.6 |
| 0.015 | 13.0 | 11.0 | 5.0 | 10.0 | 0.6 | 13.0 | 11.0 | 5.0 | 10.0 | 0.6 | 13.0 | 11.0 | 5.0 | 10.0 | 0.6 | 13.0 | 11.0 | 5.0 | 10.0 | 0.6 |
| 0.022 | 13.0 | 11.0 | 5.0 | 10.0 | 0.6 | 13.0 | 11.0 | 5.0 | 10.0 | 0.6 | 13.0 | 11.0 | 5.0 | 10.0 | 0.6 | 13.0 | 12.0 | 6.0 | 10.0 | 0.6 |
| 0.033 | 13.0 | 11.0 | 5.0 | 10.0 | 0.6 | 13.0 | 11.0 | 5.0 | 10.0 | 0.6 | 13.0 | 11.0 | 5.0 | 10.0 | 0.6 | 13.0 | 13.0 | 7.0 | 10.0 | 0.6 |
| 0.047 | 13.0 | 11.0 | 5.0 | 10.0 | 0.6 | 13.0 | 11.0 | 5.0 | 10.0 | 0.6 | 13.0 | 11.0 | 5.0 | 10.0 | 0.6 | 18.0 | 12.0 | 6.0 | 15.0 | 0.8 |
| 0.068 | 13.0 | 11.0 | 5.0 | 10.0 | 0.6 | 13.0 | 11.0 | 5.0 | 10.0 | 0.6 | 18.0 | 12.0 | 6.0 | 15.0 | 0.6 | 18.0 | 13.5 | 7.5 | 15.0 | 0.8 |
| 0.1 | 13.0 | 11.0 | 5.0 | 10.0 | 0.6 | 13.0 | 11.0 | 5.0 | 10.0 | 0.6 | 18.0 | 12.0 | 6.0 | 15.0 | 0.8 | 18.0 | 14.5 | 8.5 | 15.0 | 0.8 |
| 0.15 | 13.0 | 11.0 | 5.0 | 10.0 | 0.6 | 13.0 | 12.0 | 6.0 | 10.0 | 0.6 | 18.0 | 13.5 | 7.5 | 15.0 | 0.8 | 26.5 | 16.5 | 7.0 | 22.5 | 0.8 |
| 0.22 | 13.0 | 11.0 | 5.0 | 10.0 | 0.6 | 18.0 | 11.0 | 5.0 | 15.0 | 0.8 | 26.5 | 15.0 | 6.0 | 22.5 | 0.8 | 26.5 | 17.0 | 8.5 | 22.5 | 0.8 |
| 0.33 | 13.0 | 12.0 | 6.0 | 10.0 | 0.6 | 18.0 | 12.0 | 6.0 | 15.0 | 0.8 | 26.5 | 16.5 | 7.0 | 22.5 | 0.8 | 32.0 | 20.0 | 11.0 | 27.5 | 0.8 |
| 0.47 | 18.0 | 11.0 | 5.0 | 15.0 | 0.8 | 18.0 | 13.5 | 7.5 | 15.0 | 0.8 | 26.5 | 17.0 | 8.5 | 22.5 | 0.8 | 32.0 | 22.0 | 13.0 | 27.5 | 0.8 |
| 0.68 | 18.0 | 12.0 | 6.0 | 15.0 | 0.8 | 18.0 | 14.5 | 8.5 | 15.0 | 0.8 | 32.0 | 20.0 | 11.0 | 27.5 | 0.8 | |||||
| 1.0 | 18.0 | 13.5 | 7.5 | 15.0 | 0.8 | 26.5 | 17.0 | 8.5 | 22.5 | 0.8 | 32.0 | 22.0 | 13.0 | 27.5 | 0.8 | |||||
| 1.5 | 18.0 | 14.5 | 8.5 | 15.0 | 0.8 | 26.5 | 19.0 | 10.0 | 22.5 | 0.8 | 32.0 | 25.5 | 16.0 | 27.5 | 0.8 | |||||
| 2.2 | 26.5 | 17.0 | 8.5 | 22.5 | 0.8 | 32.0 | 20.0 | 11.0 | 27.5 | 0.8 | ||||||||||
| 3.3 | 26.5 | 19.0 | 10.0 | 22.5 | 0.8 | 32.0 | 22.0 | 13.0 | 27.5 | 0.8 | ||||||||||
| 4.7 | 32.0 | 20.0 | 11.0 | 27.5 | 0.8 | 32.0 | 25.0 | 14.0 | 27.5 | 0.8 | ||||||||||
| 6.8 | 32.0 | 22.0 | 13.0 | 27.5 | 0.8 | |||||||||||||||
| 10 | 32.0 | 25.0 | 14.0 | 27.5 | 0.8 | |||||||||||||||
1. OPERATION TEMPERATURE : -40 ℃~ +85℃
2. CAPACITANCE RANGE 0.01~1.0μF
3. CAPACITANCE TOLERANCE : ±5%(J),±10%(K) (other values on request)
4. RATED VOLTAGE : 100VDC,250VDC,400VDC,630VDC
5. DISSIPATION FACTOR : 1.0% Max at 1kHz, 25 ℃
6. INSULATION RESISTANCE :
≧15,000 MΩ ( C≦.33μF )
≧5,000 MΩ*C ( C＞.33μF )
2. CAPACITANCE RANGE 0.01~1.0μF
3. CAPACITANCE TOLERANCE : ±5%(J),±10%(K) (other values on request)
4. RATED VOLTAGE : 100VDC,250VDC,400VDC,630VDC
5. DISSIPATION FACTOR : 1.0% Max at 1kHz, 25 ℃
6. INSULATION RESISTANCE :
≧15,000 MΩ ( C≦.33μF )
≧5,000 MΩ*C ( C＞.33μF )
Maximum pulse rise time (dv/dt) V/usec
P
VCD
10.0
15.0
22.5
27.5
100
6
3
2
1
250
11
7
4
3
400
20
10
5.5
5
630
30
15
8
7
1. DF值高，高頻時DF變化較大不適用於共振及補振電路
2. 耐電壓衝擊性較佳
3. 採用金屬化膜材料，具有自復性
4. 外殼為阻燃塑料外殼，內灌環氧樹脂密封(complinance與符合UL94V – 0)
2. 耐電壓衝擊性較佳
3. 採用金屬化膜材料，具有自復性
4. 外殼為阻燃塑料外殼，內灌環氧樹脂密封(complinance與符合UL94V – 0)
