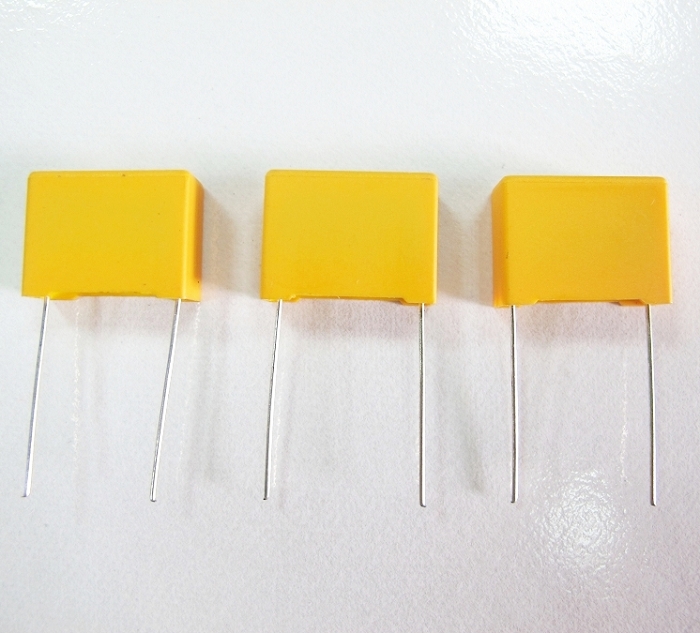

金屬化聚丙烯膜電容器
METALLIZED POLYPROPYLENE FILM CAPACITOR (MPH) - For High voltage capacitor to light up
金屬化聚丙烯膜電容器(高電壓專用)
適合使用於電源跨接處
DIMENSION:
| CAPACITANCE | 3A(1000VDC~1250VDC) | 3B(1600VDC) | 3C(2000VDC) | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| µF |
CASE CODE |
W | H | T | P | d | W | H | T | P | d | W | H | T | P | d |
| 0.0022 | C3 | 13 | 12 | 6 | 10 | 0.6 | 13 | 12 | 6 | 10 | 0.6 | 13 | 12 | 6 | 10 | 0.6 |
| 0.0022 | D1 | 18 | 11 | 5 | 15 | 0.6 | 18 | 11 | 5 | 15 | 0.6 | 18 | 11 | 5 | 15 | 0.6 |
| 0.0033 | C3 | 13 | 12 | 6 | 10 | 0.6 | 13 | 12 | 6 | 10 | 0.6 | 13 | 12 | 6 | 10 | 0.6 |
| 0.0033 | D1 | 18 | 11 | 5 | 15 | 0.6 | 18 | 11 | 5 | 15 | 0.6 | 18 | 11 | 5 | 15 | 0.6 |
| 0.0039 | C3 | 13 | 12 | 6 | 10 | 0.6 | 13 | 12 | 6 | 10 | 0.6 | 13 | 12 | 6 | 10 | 0.6 |
| 0.0039 | D1 | 18 | 11 | 5 | 15 | 0.6 | 18 | 11 | 5 | 15 | 0.6 | 18 | 11 | 5 | 15 | 0.6 |
| 0.0047 | C3 | 13 | 12 | 6 | 10 | 0.6 | 13 | 12 | 6 | 10 | 0.6 | 13 | 12 | 6 | 10 | 0.6 |
| 0.0047 | D2 | 18 | 12 | 6 | 15 | 0.6 | 18 | 12 | 6 | 15 | 0.6 | 18 | 12 | 6 | 15 | 0.6 |
| 0.0056 | C3 | 13 | 12 | 6 | 10 | 0.6 | 13 | 12 | 6 | 10 | 0.6 | 13 | 12 | 6 | 10 | 0.6 |
| 0.0056 | D2 | 18 | 12 | 6 | 15 | 0.6 | 18 | 12 | 6 | 15 | 0.6 | 18 | 12 | 6 | 15 | 0.6 |
| 0.0068 | D3 | 18 | 13.5 | 7.5 | 15 | 0.6 | 18 | 13.5 | 7.5 | 15 | 0.6 | 18 | 13.5 | 7.5 | 15 | 0.6 |
| 0.01 | D4 | 18 | 14.5 | 8.5 | 15 | 0.6 | 18 | 14.5 | 8.5 | 15 | 0.6 | 18 | 14.5 | 8.5 | 15 | 0.6 |
| 0.015 | D5 | 18 | 17 | 10 | 15 | 0.6 | 18 | 17 | 10 | 15 | 0.6 | 18 | 17 | 10 | 15 | 0.6 |
| 0.05 | E1 | 26.5 | 15 | 6 | 20.5 | 0.8 | 26.5 | 15 | 6 | 20.5 | 0.8 | 26.5 | 15 | 6 | 20.5 | 0.8 |
| 0.22 | E4 | 26.5 | 19 | 10 | 20.5 | 0.8 | 26.5 | 19 | 10 | 20.5 | 0.8 | 26.5 | 19 | 10 | 20.5 | 0.8 |
- OPERATING TEMPERATURE：-40°C~ + 85°C
- CAPACITANCE RANGE：0.0022-0.1MFD.
- CAPACITANCE TOLERANCE±5%(J), ± 10%(K)
- RATED VOLTAGE：1,000~2000VDC.
- DISSIPATION FACTOR： 0.15%MAX AT 20KHz,25°C
- VOLTAGE PROOF：5,000VDC 1Sec（20℃）
- INSULATION RESISTANCE：
- ＞30,000MΩ (C≦0.33uF)
- ＞10,000MΩ/ μF(C＞0.33uF) AT25℃
- ENDURANCE：
- THE TEST VOLTAGE 2,500VAC SHALL BE APPLIED FOR 1000HOURS IN THE85℃CHAMBER. DURING THIS PERIOD, 1000VAC 20KHZ FOR A PERIOD OF 0.1SEC BE APPLIED ONCE EACH HOUR. AFTER THE TEST. ΔC/C≦10%, ΔDF≦0.15%, ΔIR≧50% OF THE SPECIFIED VALUE.
- 採用METALLIZED POLYPROPYLENE材質
- DF值小，常使用於震盪電路(如補振電路)，高頻時需注意DF值變化
- 具有安全保護作用，在較大脈波衝擊時，會造成OPEN的現象且不會爆裂、自燃等危險傷害；可保護其他組件或零件
- 一邊使用於電源跨接處，可消除AC電源之交流聲及防止大脈波之流入
